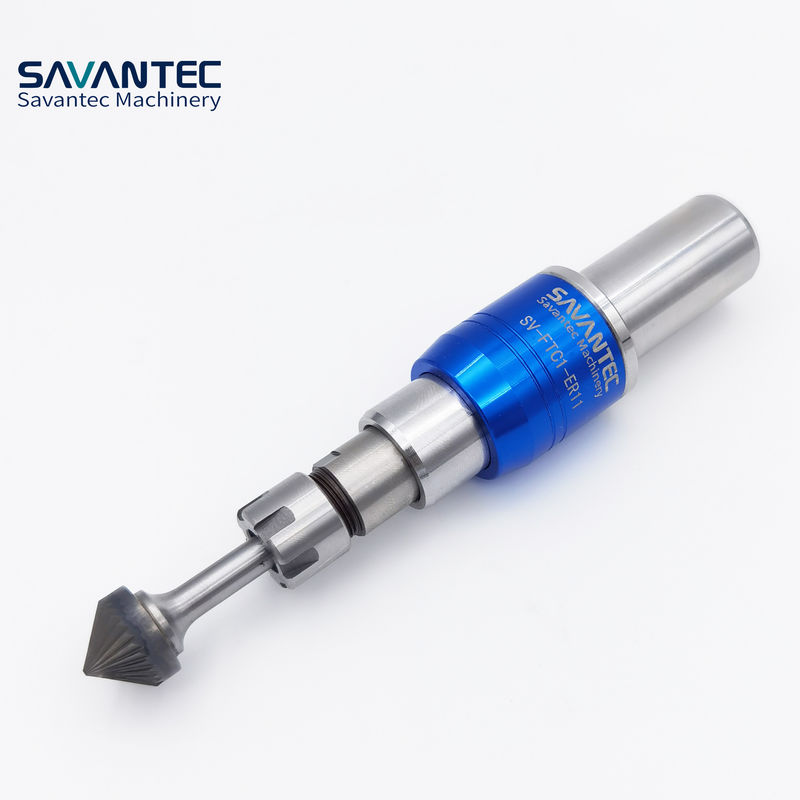

The detailed introduction of SV-FTC1 CNC Lathe Tool Holder is as follows:
1, Definition and purpose
SV-FTC1 CNC Lathe Tool Holder is a tool fixture designed specifically for CNC lathes, used to fix and support cutting tools, ensuring tool stability and accuracy during high-speed and high-precision cutting processes.
2, Structure and characteristics
Structural design: SV-FTC1 typically has a sturdy fixture body that can firmly grip the tool and provide sufficient rigidity and stability. The fixture may also be equipped with an adjustment mechanism for fine-tuning the position and angle of the tool.
Floating mechanism: SV-FTC1 may adopt a floating design, allowing the tool to make small position adjustments during the machining process to adapt to changes in the workpiece surface or compensate for small errors in the machine tool. This floating design helps to improve machining accuracy and surface quality.
High precision: The design of SV-FTC1 emphasizes high precision and stability, ensuring that the relative position between the tool and the workpiece remains unchanged during the cutting process, thereby achieving high-quality machining results.
3, Technical specifications (example)
Please note that the following technical specifications are illustrative and specific numbers may vary depending on different manufacturers and models:
Fixture diameter range: SV-FTC1 may be suitable for a certain range of tool diameters, depending on the design and manufacturing capabilities of the fixture.
Floating range: If SV-FTC1 has a floating mechanism, its floating range may depend on the specific design and is usually used to compensate for small positional deviations.
Material: SV-FTC1 is usually made of high-strength and wear-resistant materials to ensure sufficient durability and stability during high-speed and high load cutting processes.
4, Usage
Preparation before installation: Check if SV-FTC1 matches the CNC lathe and cutting tools to ensure that all components are intact and undamaged. Clean the fixtures and tools, and lubricate them according to the manufacturer's requirements.
Install the fixture: Install SV-FTC1 onto the tool holder of the CNC lathe, ensuring that the connection between the fixture and the tool holder is firm and reliable.
Install the cutting tool: Install the cutting tool onto the SV-FTC1 fixture and make adjustments to the position and angle as needed.
Start machining: Start the CNC lathe and perform cutting according to the predetermined machining program. During the machining process, pay attention to observing the cutting effect and the status of the machine tool. If there are any abnormalities, stop the machine in a timely manner for handling.
5, Maintenance and upkeep
Regular cleaning: Regularly clean SV-FTC1 fixtures and tools to remove surface impurities such as oil and dust, and maintain their cleanliness.
Inspection and replacement: Regularly check the wear of various components of the fixture. If there are damaged or severely worn components, they should be replaced in a timely manner to ensure processing quality and efficiency.
Lubrication maintenance: According to the manufacturer's requirements, regularly lubricate the lubrication parts of the SV-FTC1 fixture to maintain its good working condition and extend its service life.
Summary: SV-FTC1 CNC Lathe Tool Holder is a tool fixture designed specifically for CNC lathes, characterized by high precision, stability, and floating mechanism. Adequate inspection and preparation are required before use to ensure compatibility with the machine tool and cutting tools. During use, installation, debugging, and processing should be carried out in accordance with operating procedures, and regular maintenance and upkeep should be carried out to ensure its long-term stable performance and processing quality.
